JK-1230-48W-A
  • Details
  • Datasheet

JK-1230-48W-A

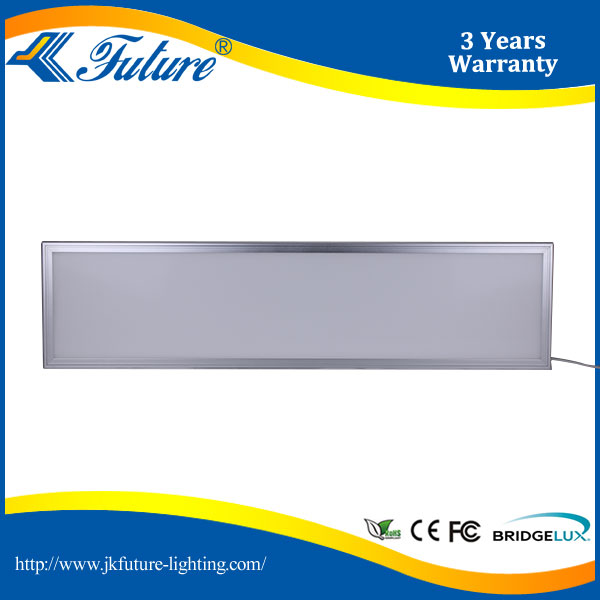

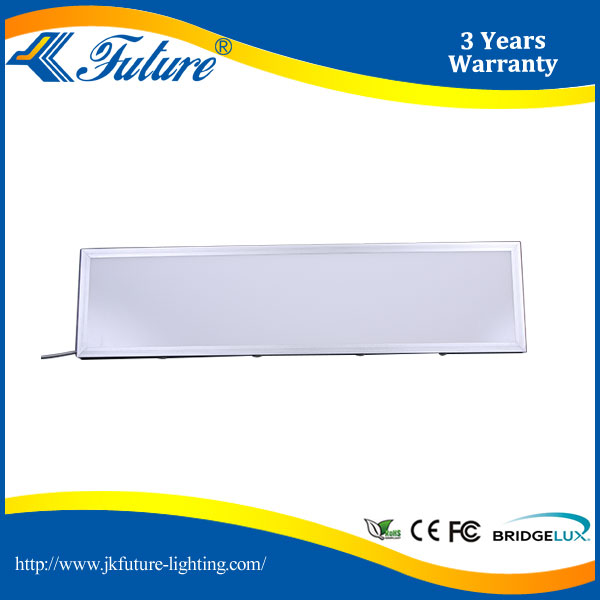

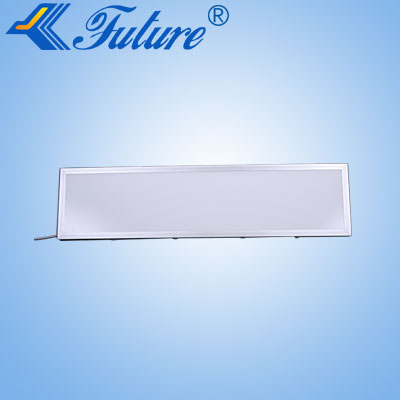

Item:LED Panel Light 1212x298x9mm

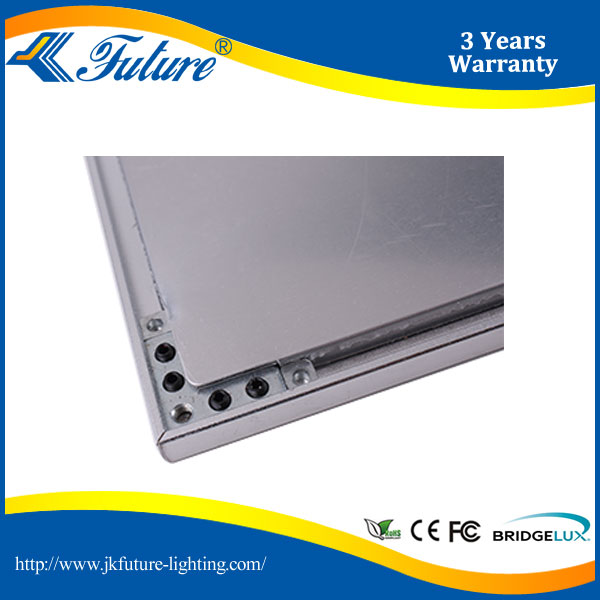

Material:Aluminum frame
Frame:Silver / Milky white
Light Source:SMD LED 4014 0.2W
Lamp Power:48W
Input Voltage:100-240VAC
ColorTemp(CCT):3000K/4000K/5000K/6000K
Luminous Flux:4320lm
Light Efficacy:90lm/w
CRI:Ra>80
Driver:Lifud / Meanwell / Moso
Power Factor:≥0.9
Beam angle:120°
Protection Grade:IP44
Certification:TUV, CE(LVD, EMC), GS CB, RoHS, SAA

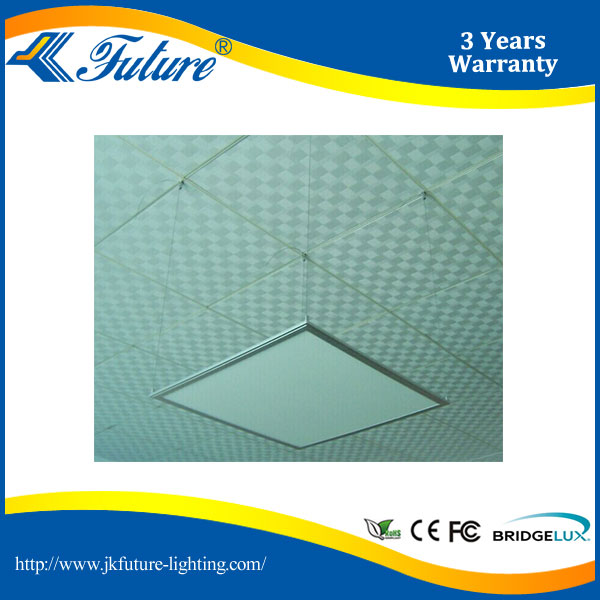

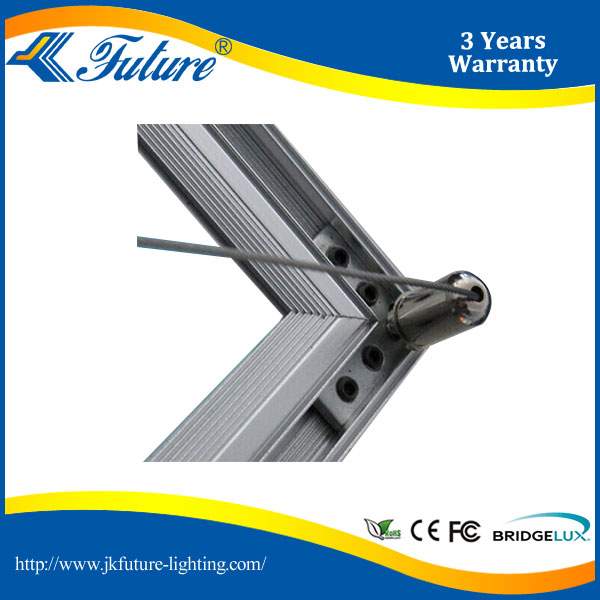

Installation:Recessed / suspened / surface mount
Lifespan(Hour):>50,000
Warranty:3-Year / 5-Year (optional)
Working Temperature(oC):-20-50oC (light increase<20oC)


Features

1. JK FUTURE Ultra slim 9mm thickness modern design
2. Saving >60% electricity cost compared to the traditional Panel lights
3. Taiwan immported optical PMMA LGP, transmits light rate >90% uniformed light
4. Leading heat management,low temperature increase(<20°C), largely increased the life span
5. Special circuit design, each group of LEDs work separately, avoiding any problem
of lighting output caused or influenced by single faulty LED
6. JK FUTURE panel, instant start, no warm up time
7. No humming, no flickering
8. No UV or IR radiation in the beam
9. JK FUTURE panel, eco-friendly, no mercury or harmful materials
10.Easy to install- with recessed, suspeneded or sufrace mount
11.TRIAC/ 0~10V/DALI Dimmable options available
